Breaking Down the High-Tech Design Behind Vehicle Suspension System

Driving without a suspension system can be very uncomfortable and bumpy. The suspension is the ultimate wingman for your car. The suspension system is a network of components in your vehicle designed to absorb and manage the impact of forces generated while driving. In simple words, it ensures that your ride is smooth and controlled.

This article will provide deep insights into suspension systems and their role in driving dynamics by breaking down their functions step by step.

How Suspension System Works

Your car’s suspension system is like a symphony orchestra. The springs are like the strings, adding a soft melody to the road bumps. Shock absorbers act as the conductors, making sure every note is played with perfection. The control arms and links are skillful musicians, creating a harmonious ride that’s music to your ears.

Your car’s suspension system operates through a combination of components to provide a comfortable and stable ride. At its core are springs designed to absorb the impact of bumps and road irregularities. When the wheels encounter such obstacles, the springs compress, store energy, and release it to minimize the harsh effect.

Completing the springs are shock absorbers responsible for dampening the changes created by the bouncing motion of the springs. These absorbers make sure a controlled and smooth ride by regulating the movement of the springs.

Control arms and links connect the wheels to the vehicle’s body, allowing for coordinated activity during turns and braking. The collaborative function of these components results in a suspension system that increases the vehicle’s comfort and handling, providing a balanced and enjoyable driving experience.

In short, suspension system elements such as springs, shock absorbers, struts, and various linkages help maintain the tire contact with the road and stabilize the vehicle during navigation. The system is designed to balance the weight distribution, minimize vibrations and impacts, and adapt to varying road conditions.

Breaking Down the Suspension System

The suspension system is comprised of many interconnected components. You can see the breakdown below.

Vehicle Suspension System

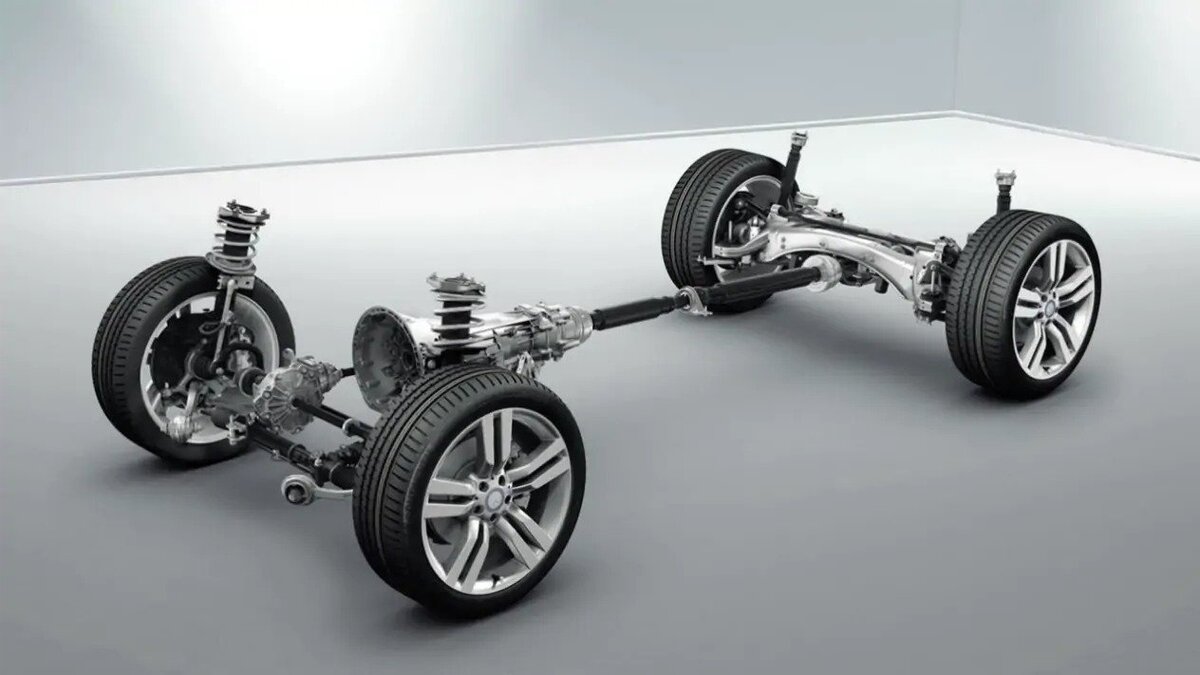

Figure: Close-up of a car’s suspension system

Springs:

Springs are crucial to the suspension system of your car; they function as shock absorbers and provide cushioning, especially when the vehicle is on uneven terrain or a bumpy road. When the wheels of your car come across a barrier., the springs compress to absorb the impact energy. Later, they release this stored energy, preventing the vehicle from bouncing uncontrollably. Crafted with precision and efficiency by advanced manufacturing techniques like CNC machining, springs play a critical role in automotive engineering due to their ability to absorb shocks, maintain tire contact, and influence handling.

Shock Absorbers:

Shock absorbers complete the action of springs by controlling the movements and preventing extreme bouncing. What happens is that When the springs compress and release, shock absorbers damp the movement by using hydraulic or gas means. This controlled motion guarantees a smooth ride for you.

Control Arms and Links:

Control arms and links connect your car’s body to the wheels, allowing controlled movement during turns and braking. These components shift and move in response to steering and braking inputs. Make sure that your wheels are aligned and your vehicle is stable. In this component, ball joints also play an unassuming yet key role.

These spherical joints at the ends of control arms act as pivots, allowing the wheels to move up and down while maintaining a connection to the suspension system. Their smooth operation is essential for a smooth and controlled ride. The stabilizer bar, also known as an anti-roll bar, also plays the role of a balance master. This component, typically a long, torsion-resistant bar, connects the suspension components on opposite sides of the vehicle, working to minimize body roll during cornering.

Types of Suspension Systems

There are several types of suspension systems used in vehicles, each designed to fulfil specific needs related to comfort, handling, and stability. Let’s discuss them in detail.

Vehicle Suspension System

Figure: Types of Suspension Systems

Independent Suspension:

Independent Suspension can be further divided into subtypes to understand its mechanism better.

Double Wishbone Suspension: Uses two parallel wishbone-shaped arms resembling the letter “A”. Thanks to these arms, each wheel can move up and down independently when you hit a bump. This design offers better handling because it allows each wheel to respond to the road conditions individually.

Multi-Link Suspension: It is more of a sophisticated network of multiple links and control arms. It is like a system of interconnected levers supporting your car’s wheels. They are more precise and make sure that your ride is responsive.

Dependent Suspension:

This also can be further divided into

Solid Axle Suspension: Connects both wheels on an axle, and the movement of one wheel affects the other. It’s simpler but may offer you a rougher ride compared to independent systems.

Torsion Beam Suspension: A simpler version of independent Suspension, often used in rear-wheel-drive vehicles.

Air Suspension:

This suspension type Uses air springs instead of traditional coil or leaf springs. It allows for adjustable ride height and a smoother ride; if you own a luxury vehicle or SUV, you probably have this type of suspension.

MacPherson Strut Suspension:

This type of suspension is often found in front-wheel-drive cars; it is a straightforward approach to suspension design. It merges a coil spring and a shock absorber into a single unit, making it simpler. This setup is then placed in each front of your car’s wheel assembly, simplifying the overall structure of the front suspension. It not only saves space but also makes shock absorption more effective for your vehicle.

Active Suspension:

It uses electronic controls and sensors to adjust the Suspension in real time based on your driving conditions, improving comfort and performance.

Hydropneumatic Suspension:

It Combines fluid and gas elements to provide a soft and smooth ride.

Leaf Spring Suspension:

It is commonly found in the rear Suspension of trucks and heavy-duty vehicles, consisting of several layers of metal strips.

Electronic Controlled Suspension:

This type of suspension allows for electronic adjustments in the stiffness of the Suspension, providing a balance between comfort and sporty handling.

Which type of suspension is best depends on factors such as why you are using your vehicle, for example, whether to drive for long hours for business or just for family use, the design of your car and your priority while driving.

More than often, manufacturers select the suspension that goes best with the vehicle. Still, you can get it customized based on your preferences and driving intent.

The Role of 5 axis CNC Machining in Advanced Vehicle Suspensions

At the heart of these sophisticated suspensions that we have discussed above so far lies the precision and versatility of 5 axis CNC machining. This advanced manufacturing technique has revolutionized how suspension components are produced, empowering engineers to create parts with precision and complexity.

How 5 axis CNC Machining Works

Imagine a sculptor working with a block of marble. In the world of 5 axis CNC machining, the sculptor is a computer, and the marble is a solid metal block. Using five simultaneous axes of movement, the computer guides a cutting tool with incredible precision, carving out intricate shapes and geometries that would be impossible to achieve by hand.

Benefits of 5 axis CNC Machining for Vehicle Suspensions

The benefits of 5 axis CNC machining for vehicle suspensions are numerous. Here are some of the benefits:

Enhanced Performance: With 5 axis CNC machining, engineers can create suspension components with precise geometries and tight tolerances, resulting in superior handling, stability, and ride comfort.
Lightweight Construction: 5 axis CNC machining helps the production of light, high-strength components, contributing to overall weight reduction of your car and improved fuel efficiency.
Customizable and Precise: 5 axis CNC machining allows for producing suspension components customized to your car’s specific requirements and performance specifications.
Faster Manufacturing: The efficiency of 5 axis CNC machining simplify the production process, reducing lead times and increasing manufacturing output.
Versatility: 5 axis CNC machining can handle various materials, from lightweight aluminum alloys to high-strength steels, offering greater design flexibility.

Applications of 5 axis CNC Machining in Suspension Components

5 axis CNC machining plays a crucial role in the production of various critical suspension components:

Suspension Arms: These load-bearing components are meticulously shaped using 5 axis CNC machining to ensure optimal strength, stiffness, and weight distribution.
Control Arms: 5 axis CNC machining allows for creating complex control arms with precise geometries, ensuring accurate wheel alignment and handling control.
Knuckle Assemblies: The intricate shapes of knuckle assemblies, which connect the suspension arms to the wheels, are expertly machined using 5 axis CNC technology.
Steering Knuckles: 5 axis CNC machining enables the production of steering knuckles with precise bearing interfaces and integrated steering linkage points.
Spring Seats: The precise contours of spring seats, which support and position the suspension springs, are accurately machined using 5 axis CNC techniques.

The Future of 5 axis CNC Machining in Vehicle Suspensions

As automotive technology continues to evolve, the role of 5 axis CNC machining in designing advanced vehicle suspensions will expand further. With its ability to create complex, lightweight, and high-precision parts, will undoubtedly remain an integral part of the suspension design process, ensuring that vehicles continue to provide unparalleled driving experiences.

Important Suspension System Tips for Vehicle Owners

The suspension system is an important part of your vehicle, and it’s important to take care of it. Here are some tips for maintaining performance, safety, and comfort:

Regular Inspections

Regularly inspect your vehicle’s suspension components for signs of wear, damage, or leaks. The Early detection can prevent further damage and ensure a smoother ride.

Check for Unusual Noises

Pay attention to any clunking or knocking sounds when driving over bumps. More than often unusual noises may mean issues with suspension components, and addressing them timely can prevent more serious problems.

Maintain Proper Tire Inflation

Keep tires properly inflated according to the manufacturer’s recommendations. Correct tire pressure provides even weight distribution, reducing stress on suspension components and improving fuel efficiency.

Alignment Checks

Get regular wheel alignments, especially after hitting potholes or curb impacts. Proper alignment extends tire life, improves handling, and prevents uneven wear on suspension parts.

Vehicle Suspension System

Figure: showcasing the importance of alignment of suspension system components

Smooth Driving Habits

Avoid aggressive driving, excessive speeding, and harsh braking.

Gentle driving reduces stress on the suspension, promoting consistent performance.

Load Capacity Awareness

Adhere to the manufacturer’s load capacity recommendations. Overloading a vehicle can weaken the suspension, leading to early wear and decreased performance.

Professional Inspections

Schedule periodic inspections by a qualified mechanic. Professional inspections can identify issues early, ensuring timely repairs and preventing safety hazards.

Upgrade Considerations

Explore suspension upgrades for improved performance. Upgrades can improve handling, responsiveness, and overall driving experience, suitable for those seeking a customized ride.

Additional Tips:

Use the correct type of suspension fluid. The type of suspension fluid you use will depend on the type of suspension system you have. Be sure to check your owner’s manual for the recommended fluid type.
Replace your suspension shocks and struts regularly. Shocks and struts wear out over time and can affect the handling of your vehicle. Be sure to replace them according to the manufacturer’s recommended schedule.
Avoid driving over potholes and other bumps. Potholes and bumps can damage your suspension system. If you can’t avoid them, try to slow down and go over them smoothly.

In conclusion, the suspension system is a crucial part of any vehicle, playing an important role in providing a smooth, comfortable, and safe ride. By absorbing bumps and irregularities in the road surface, the suspension system helps to maintain tire contact with the road, improving stability.

It also reduces noise, vibration, and harshness, making the driving experience more enjoyable. Over all the suspension system is as crucial to the driving experience as the vehicle itself. Advanced manufacturing techniques like 5 axis CNC machining have also transformed how suspension components are produced.

In essence, the suspension system is the silent guardian of a smooth and enjoyable ride, ensuring that every journey is a testament to the harmonious interplay of technology and engineering.
