Electric Discharge Machining (EDM): Working Principle, Types, Advantages, and Applications

Introduction:
In the realm of modern industrial manufacturing, the quest for higher precision and intricate machining processes has given rise to innovative technologies. Among these, Electric Discharge Machining (EDM) stands out as an exceptional method that achieves remarkable precision through controlled electrical discharges.
Understanding Electric Discharge Machining (EDM):
EDM, sometimes referred to as spark erosion, is a machining technique that employs precisely controlled electrical discharges to erode and shape workpieces. Its effectiveness shines particularly when working with materials that are challenging to machine using conventional methods. EDM enables the creation of intricate shapes and precision machining of complex geometries.
How EDM Operates:
The EDM process revolves around controlled electrical discharges between the tool (electrode) and the workpiece, both submerged in dielectric fluid. This process can be divided into several stages:
Electrode Selection: An appropriate electrode material is chosen based on the workpiece material and desired machining outcomes. The electrode serves as a conductive tool that interacts with the workpiece during the process.
Dielectric Fluid Tank: The machining process occurs within a dielectric fluid, often an oil-based solution or deionized water. The dielectric fluid acts as a medium for electrical discharges and dissipates heat generated during the process.
Electrical Discharges: The tool and workpiece are immersed in the dielectric fluid. Controlled electrical discharges occur between them, leading to localized material melting and vaporization.
Formation of Erosion Channel: As the discharges continue, material is eroded from both the tool and the workpiece, shaping a cavity or channel with the desired geometry.
Cooling and Flushing: The dielectric fluid also serves to cool the process and wash away eroded particles. This prevents excessive heat accumulation and maintains process stability.
Types of EDM:

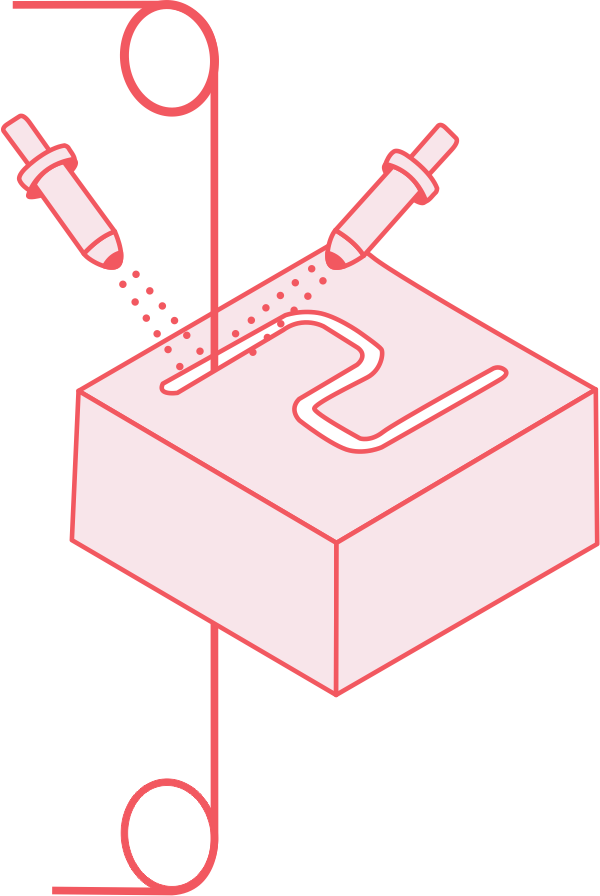

Wire EDM (WEDM):

Image Credit: https://www.madearia.com

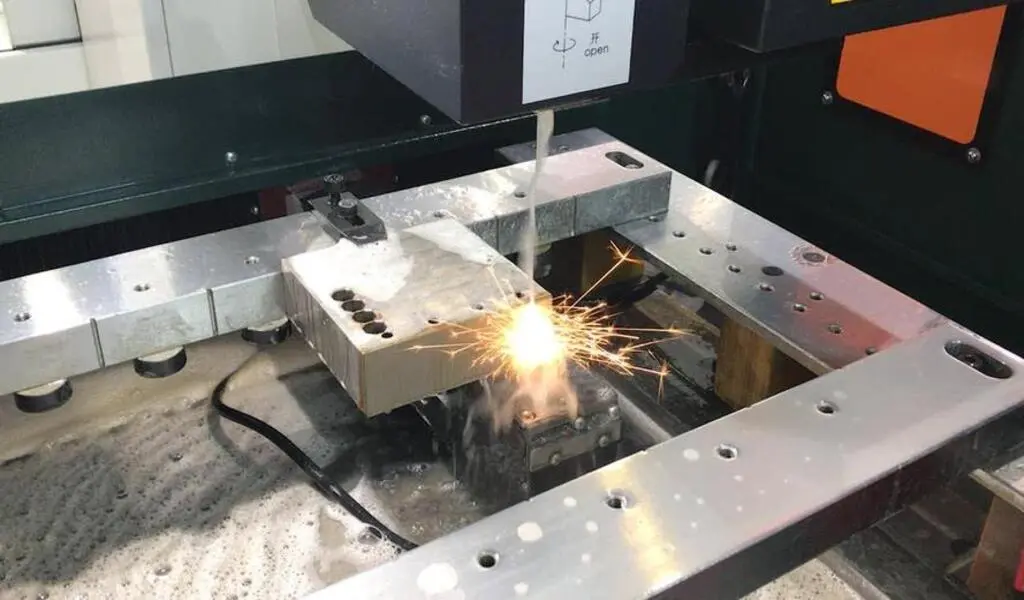

Wire Electrical Discharge Machining (Wire EDM) is a machining process that uses electrical discharges to cut precise shapes and contours in conductive materials.
It is a form of electrical discharge machining (EDM) where a thin, electrically conductive wire is used as an electrode to erode and cut through the workpiece material. Wire EDM is known for its ability to create intricate and complex shapes with high precision.

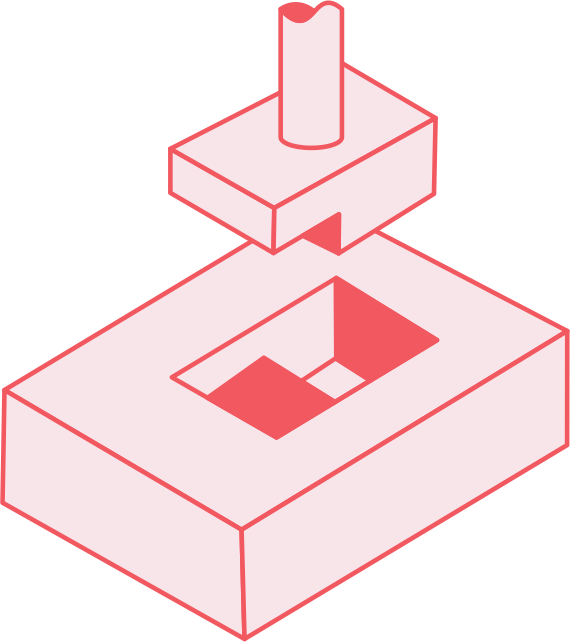

Sinker EDM:

Image Credit: https://www.madearia.com
Sinker EDM is primarily used to machine complex shapes and contours in hard materials that are difficult to machine using traditional methods like milling or grinding. Sinker EDM is particularly effective for materials that are electrically conductive, such as metals and alloys.
The basic principle behind Sinker EDM involves creating controlled electrical discharges between an electrode (also known as the tool or the electrode) and the workpiece, which is submerged in a dielectric fluid (usually oil or deionized water).
The electrical discharges create intense heat that melts or vaporizes tiny particles of the workpiece’s material, and these particles are then flushed away by the dielectric fluid.
Hole Drilling EDM
Hole Drilling EDM, also known as EDM Hole Drilling or EDM Micro-Drilling, is a specialized variant of Electrical Discharge Machining (EDM) used to create small, deep, and precise holes in conductive materials.
It is particularly valuable for applications that require holes with high aspect ratios (depth-to-diameter ratios) and extremely tight tolerances. Hole drilling EDM involves the use of a specialized electrode to erode the material and create holes of varying sizes and shapes.

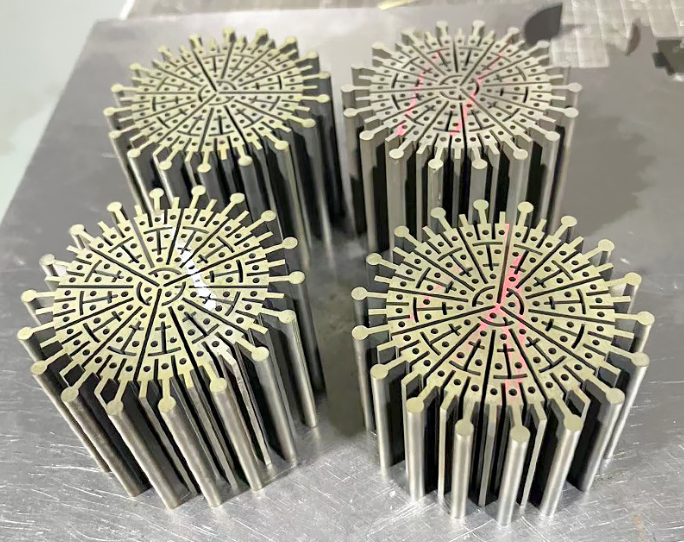

Applications of EDM:
Electrical Discharge Machining (EDM) is a versatile and precise machining process used in various industries to create complex shapes and features in conductive materials. Its unique ability to cut intricate details and hard materials makes it well-suited for a range of applications.
Some common applications of EDM include:
Medical Devices: EDM precision is harnessed in producing implants, surgical instruments, and intricate medical components.
Aerospace and Space: Critical engine components, turbine blades, and intricate aerospace parts are manufactured using EDM’s precision.
Automotive: EDM’s accuracy is leveraged in creating injection molds, gears, and intricate automotive parts.

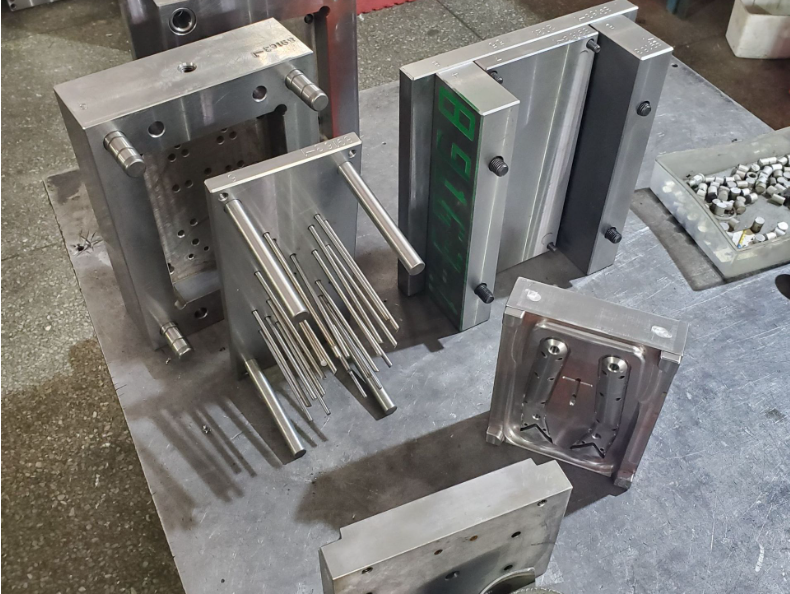

Tool and Die Industry: Complex dies, molds, and tooling components are accurately fabricated using EDM.
Mold and Die Repair: EDM is used to repair or modify existing molds and dies, correcting imperfections or altering designs without the need for extensive rework. It can also be used to create textured surfaces on molds and moulds to enhance the appearance of the finished product.
Prototyping: EDM is a valuable tool in rapid prototyping, allowing engineers and designers to quickly produce prototypes with intricate features and shapes.
Micromachining: EDM is capable of producing extremely small features with high precision, making it suitable for applications in microfabrication and micromachining.
Advantages of Electric Discharge Machines (EDM)
Electric Discharge Machines (EDM) offer significant advantages in the field of machining. Here are the benefits of using EDM:
Advantage in Production Time:
EDM can shorten production times through automation and specialized programming. It can execute complex processes faster and more effectively, enabling quicker product manufacturing.
Superior Processing Precision:
EDM stands out with its high precision processing capability. Especially for parts with intricate details, it can achieve high accuracy and deliver exceptional results.
Increase in Production Speed:
The electric discharge process provides faster results compared to traditional machining methods. This accelerates production processes while increasing overall efficiency.
Flexibility and Variety:
EDM can be applied to various materials and designs. Technological advancements allow for the production of even complex geometries. This enhances design freedom.
Low Skill Requirements:
EDM machines do not require operators to possess highly advanced skills. Automation allows less experienced personnel to use them effectively.
Tailoring the Machine Selection to Project Needs:
EDM can be customized to meet the requirements of different projects. The most suitable processing method can be chosen based on the complexity and material of the workpiece.
Broad Service Scope:
EDM services can cater to various industries. They can perform different operations such as metal cutting, drilling, processing, and surface finishing.
Advantage of Competitive Pricing:
Long-term EDM usage can reduce costs due to continuous production and low error rates. This enables competitive pricing.
High-Quality Products:
EDM produces high-quality parts due to its precision and repeatability, enhancing customer satisfaction.
In conclusion, Electric Discharge Machines (EDM) offer a range of advantages in the field of machining. Factors such as production speed, precision, flexibility, and cost-effectiveness make EDM a preferred option in modern manufacturing processes.
Collaborating with Aria Manufacturing Limited for electric discharge machine services not only offers a distinct service scope but also provides a competitive pricing advantage, high-quality results, reliable delivery, data security, and efficient communication. This partnership elevates your electric discharge machine needs to a higher level of excellence.
